BusXpert Micro Series

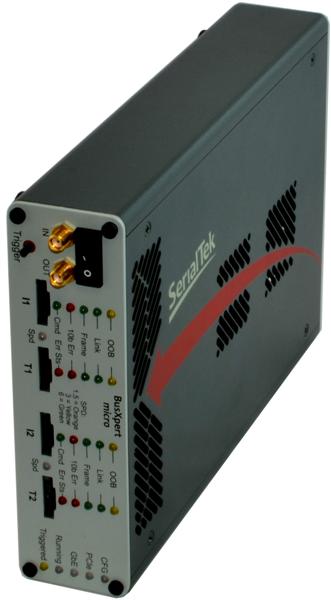

The BusXpert Micro Series SAS and SATA analyzer has a very portable form-factor, making it a preferred choice for those developers needing a compact platform with minimal noise and real estate. It’s small dimensions also make it easy to take it on the go for field engineers and for moving from bench to bench in the lab. The analyzer itself comes with several status LEDs for a quick visual reference of what is occurring on the bus. It also supports trigger in/out for those needing to trigger a scope or logic analyzer. The BusXpert Micro Series is our most capable SAS/SATA analyzer for complete SAS and SATA protocol analysis. It features the industry’s largest buffer, offering options from 2GB up to 18GB. It also has the industry’s most in-depth triggering, with up to three simultaneous sequencers, each sequencer can contain up to 16 states with timers, counters, and the ability to jump anywhere within the sequence. The BusXpert GUI also makes it easier for developers to create triggers, understand what is happening on the bus, and displays the data in a meaningful format.


Key Features:

  • PCI Express > 550MB/s
  • Enhanced Gigabit Ethernet > 70MB/s
  • Native PHY
  • Fast Data Re-Lock
  • 2ns Timestamp Resolution
  • Eye-Opener front end
  • Tunable RX/TX signaling
  • Cascadable up to 2 BusXpert Micro Systems
  • SATA 7-pin connectors
  • 1-port or 2-port (full duplex links)
  • 5V/12V controllable external power connector
  • License for SAS/SATA or SATA-only
  • Software configurable for 3.0 / 6.0 Gbps
  • Deep Trigger and Filter
  • Trace Buffer up to 18GB

Available Downloads

Hardware Specifications:

  • Measures 6″ x 9″ x 1.75″
  • Weighs less than 3lbs
  • Status LEDs per port pair for
    • Auto Speed detection
    • OOB present
    • Link Up/Down
    • Frames present
    • 10b Error detection
    • Commands present
    • Command Errors

In addition to the features above, the BusXpert Micro also supports:

  • External Trigger In/Out
  • Manual Trigger Button
  • SATA-only option for SATA Analyzer
  • SAS Analyzer with support for SATA/STP
  • Cascade with BusXpert Micro and MicroLite USB Analyzer for simultaneous record and display of SAS/SATA and USB traffic
  • Windows & Linux compatibility for both the GUI and API

All BusXpert Micro Series analyzers also come with a 1Yr Hardware warranty, free product support, and no software maintenance fees for the life of the analyzer.
